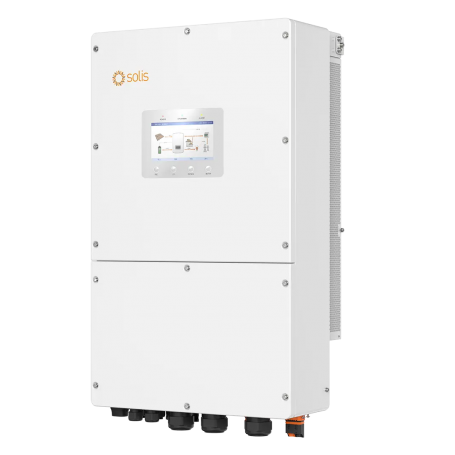

The Solis S6 EH 3p 40k-H is a 40 kW three-phase hybrid inverter with 4 independent MPPTs and a 97.8% efficiency.
The Solis S6 EH 3p 40k-H is a reliable and efficient three-phase hybrid inverter with 40 kW power and 97.8% efficiency. It features 4 MPPTs, up to 40A current, a 150–850V input range, and 180V startup voltage. It supports 160% overload for 2 seconds and up to 20A input current, ideal for high-power PV modules. Offers real-time battery monitoring and recovery, and supports high-voltage lithium batteries. Includes WiFi and meter.
TRIFÁSICO
3 MPPT
WIFI E METER INCLUÍDO
HIBRIDO
IP66
| Dados Técnicos | |
|---|---|
| Potência nominal de saída AC |
30 kW |
| Número de fases | 3 - Trifásico |
| Tensão nominal de entrada | 600 V |
| Tensão mínima de arranque | 180V |
| Gama de tensão MPPT | 150-850V |
| Voltagem de entrada máxima | 1000V |
| Numero MPPT | 3 |
| Numero de entradas por MPPT | 4/6 |
| Corrente máxima entrada | 3 x 40A |
| Potencia máxima entrada | 60 kW |
| Dados Gerais | |
|---|---|
| Eficiência máxima | 97.8% |
| Peso | 73kg |
| Dimensões | 530 × 880 × 290mm (A × L × P) |
| Garantia do produto | Garantia base de 5 anos |
| WiFi | Incluído |
| Medidor de consumo | Incluído |
| Baterias compatíveis | Sunwoda SunESS / Weko 5K3 |
Data sheet
