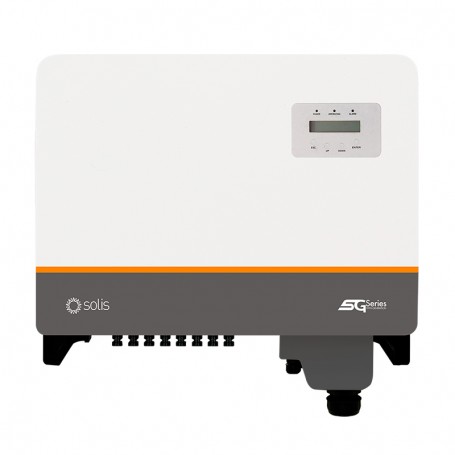

Solis S5 30K 3Ph Inverter (wifi)
- Write a review
€2,158.13
Including €1.91 for ecotax
VAT included
The Solis S5-GC 30K 3ph is a 30kW three-phase inverter, with 3 MPPTs and WiFi included, ensuring high efficiency performance.
Solis S5-GC 30K 3Ph, 3 MPPT, DC (wifi)
The Solis S5-GC 30K 3ph is a powerful and reliable 30kW three-phase inverter, with an efficiency of 98.1%. It features 6 strings per MPPT, MPPT current up to 32A, a 200-1000V voltage range per MPPT, and a minimum starting voltage of 180V. The inverter also includes string monitoring and intelligent I-V curve sweeping for enhanced performance.
ADVANTAGES
3 MPPT
WIFI
Display LCD
IP66
| Technical Data | |
|---|---|
| AC output power | 30000 W |
| DC input power | 45000 W |
| Number of phases | 3 - Trifásico |
| Number of MPPT inputs | 3/6 |
| Nominal voltage | 600 V |
| MPPT voltage range | 200-1000 V |
| Starting voltage | 180V |
| General Data | |
|---|---|
| Dimensions | 647 × 629 × 252mm |
| Weight | 38.2kg |
| Warranty | 5-year basic warranty |
IVR00301
999 Items
Data sheet
- Power (watts)
- 30000
- Number of phases
- 3-Phases (three-phase)
- MPPT Entries
- 3
